Description

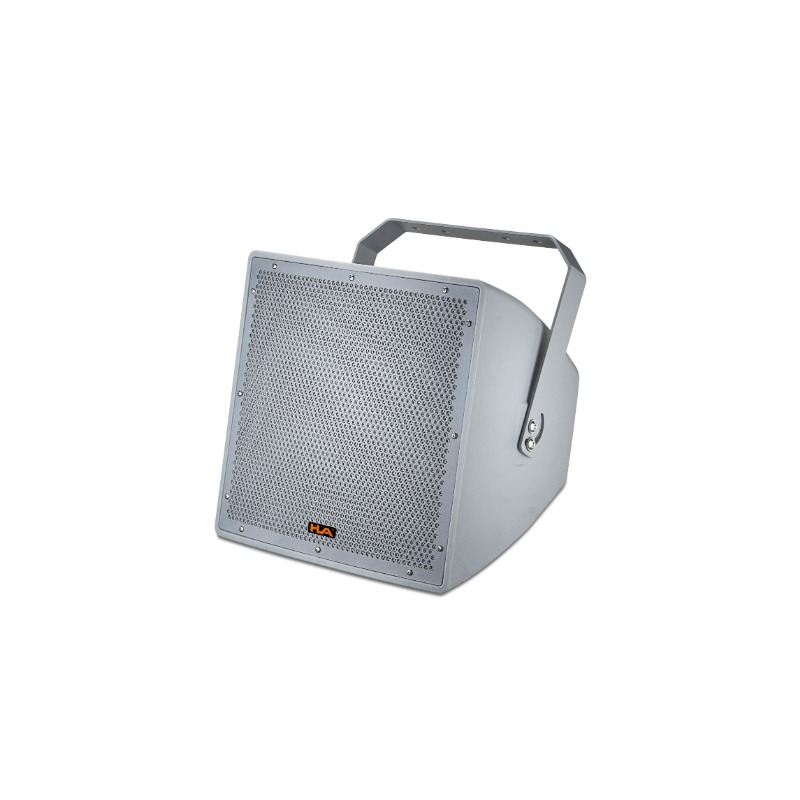

he AQ Series Coaxial Waterproof Loudspeakers – built with our SCCTM cooling technology to ensure outstanding durability and heat resistance. Compact, weatherproof, and versatile, the AQ Series delivers reliable high-performance sound for any fixed outdoor installation.

Applications

Sports Venues and Stadiums
Cultural & Tourist Attractions / Theme Parks
Urban Public Spaces
Transportation Hubs
Performances & Outdoor Events

Features

SCCTM Cooling Technology
Coaxial Design
All-Weather Construction
Flexible Installation Options
Dynamic Protection Circuitry

Technical Parameters

Model: AQ-8/8T
Frequency Range(-10dB): 80 Hz ~ 20 kHz
Dispersion（-6dB): H60 ° x V40 °
Components: LF:1×8″ (51Φ voice coil) + HF:1×1.4″ (compression driver)
Output Power: 150 W@AES/300 W@Peak
Sensitivity (1W,1m): 97dB/SPL
Max SPL/Peak: 119dB/125dB/SPL
Input Impedance: 8Ω/100V/70V(optional)

Physical Parameters

Connectors: 4p Binding Post Terminals (Red/Black)
Speaker Cabinet: Inovative PP Material
Color:Grey(Standard)
IP Rating: IP65
Dimensions (WxDxH): 300x310x300 mm
N.W:11 kg
G.W:13 kg
