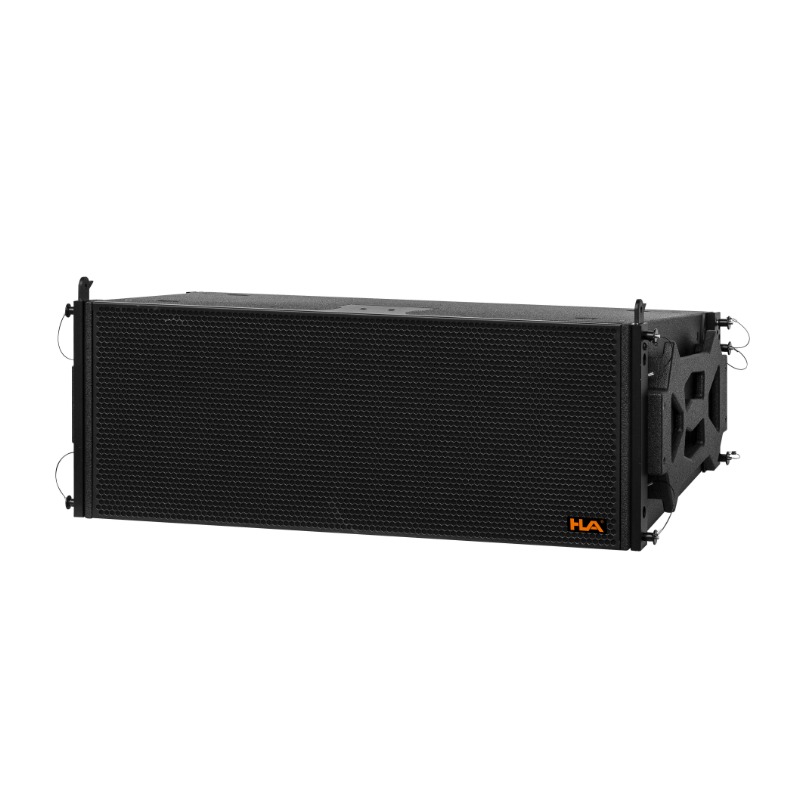

Q-312 Dual 12″ Full Range Three Way Passive Line Array Speaker

Description

The Q Series Linear Array Speakers deliver exceptional sound clarity and coverage, making them ideal for various occations. With advanced acoustic technology and versatile design, they ensure powerful, high-quality audio performance for any professional setting.

Applications

Live Show
Club
Theatre
Bar
Stadium

Features

Compact apprearance, modern design
versatile usage scenarios
Quick floor stacking or mounting
With ergonomic handle
Multi layer birch plywood. With anti-impact stuctural treatment.

Technical Parameters

Model: Q-312
Frequency Response(-10dB): 50Hz-22KHz
Components: LF: 2×12”(Φ 75mm neodymium magnet) + MF: 4×6.5″(Φ 65 mm neodymium magnet) + HF: 2×3″ neodymium compression driver
Coverage(-6dB):H: 90° V: 0° ~10°(adjustable in 1° increments)
Rated Power:  LF: 800 W@AES / 1600 W@Peak
MF: 600 W@AES /1200 W@Peak
HF: 200 W@AES / 400 W@Peak
Sensitivity(@1W/1m): LF:  99dB/SPL MF: 101dB/SPL HF: 110dB/SPL
Maximum SPL@1m,f>90Hz: LF : 128/134 dB/SPL
MF: 129/135 dB/SPL
HF: 132/138 dB/SPL
Impedance: LF: 8Ω / MF:8Ω /HF: 8Ω

Physical Parameters

Connectors: 2 x Speakon NL6MP waterproof connectors
Speaker Cable:1+/1-
Finish: Multi-layer birch plywood black polyurea coating for enhanced impact resistance.
Dimension(WxDxH): 370x1036x576 mm
N.W: 46 kg
G.W: 48 kg
